1959 Les Paul Custom Concept Ref 1 : Gibson Historic 59 Ref 2 : Nik Huber ORCA '59 Ref 3 : Mayones Regius

Event	Date	Cost	Memo	Attention

완성	23-04-10		기타 확인 후 수령함	매우 만족
바디컬러 Check	23-03-27		바디컬러 그라데이션을 조금 더 부드럽게 부탁드림	잘 됨
메이플탑 Check	23-03-16		메이플탑 굴곡면 처리에 대한 의견 조율	프론트 하단 굴곡 약간 부드럽게
바디 + 탑 무게 Check	23-01-09		3.34kg / 총 무게 4kg 넘어가도 아름다우면 허용가능	4kg
최종견적 (420), 입금, 작업 스타트	22-12-09	420	최종 견적서 확인 420 / 차동호님 입금 완료 /	Start

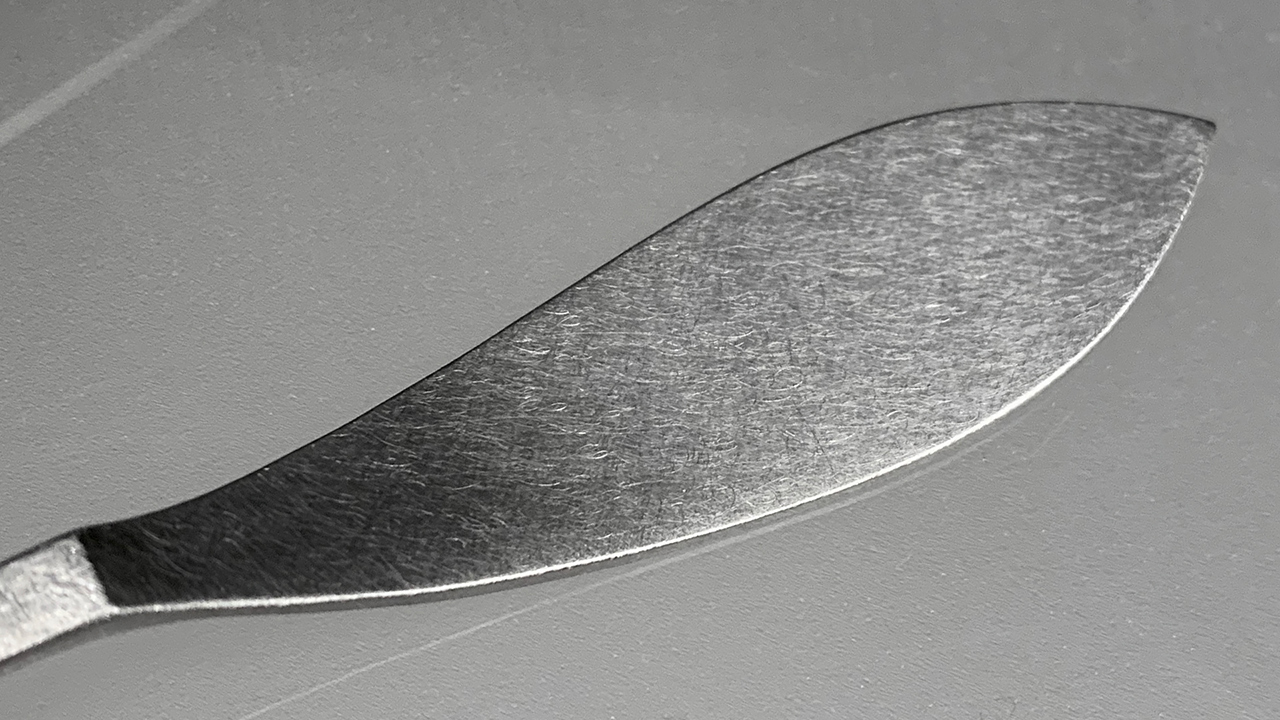

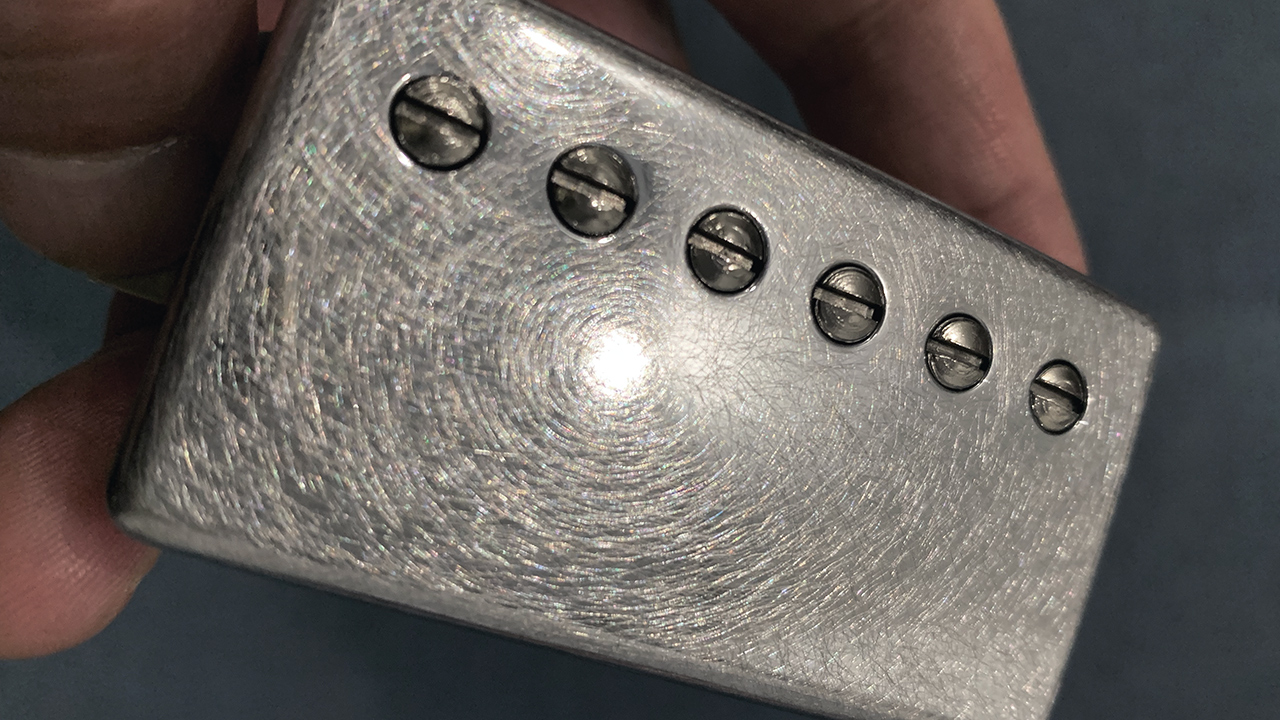

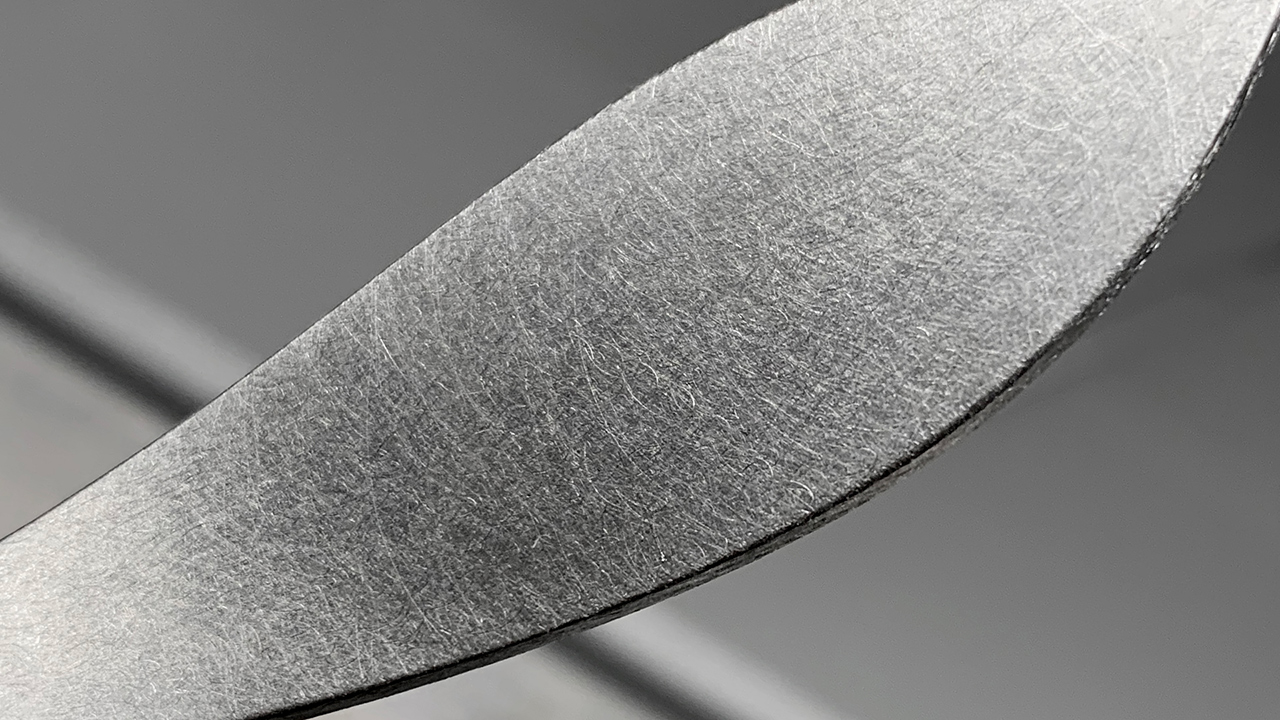

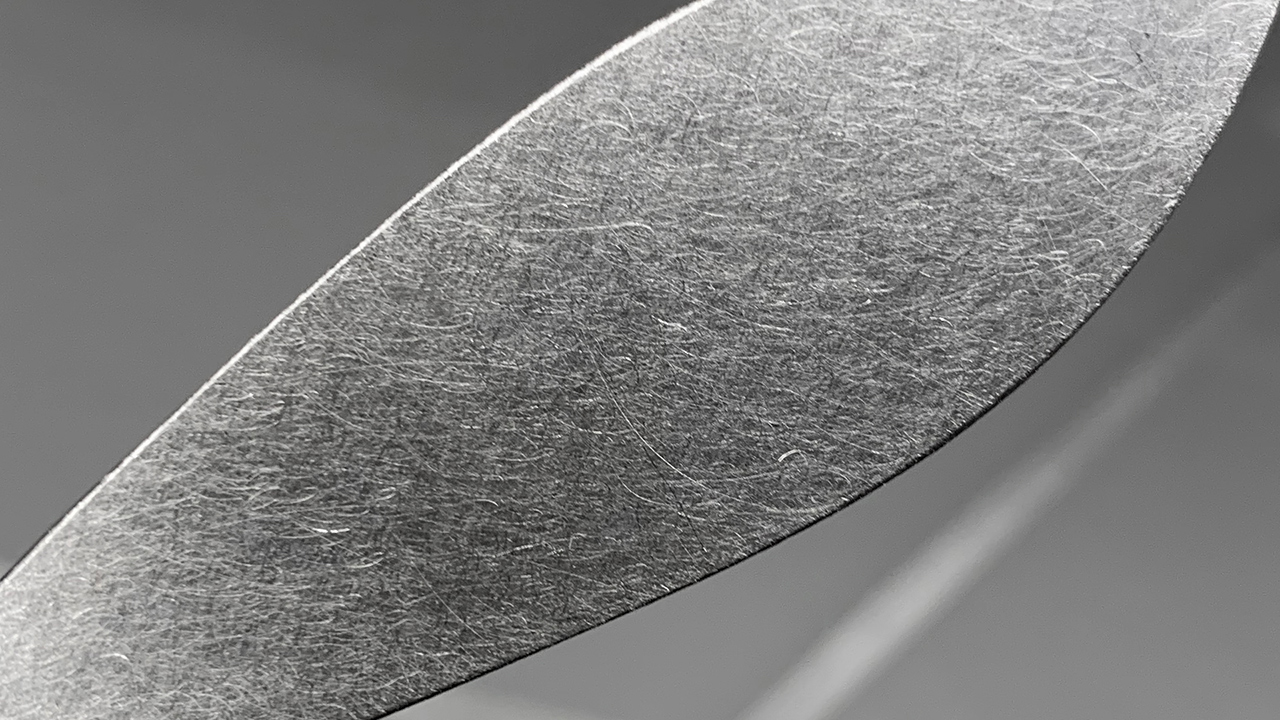

2차 미팅 (최종선택)	22-12-09		엣지공방에서 (11:00) / 여러가지 옵션상황 대부분 정리 / 헐~ PRS노브 7만원 - 깁슨노브 만오천원 / 최종 견적서	픽업, 픽업링 자체 질감처리

2023-09-03

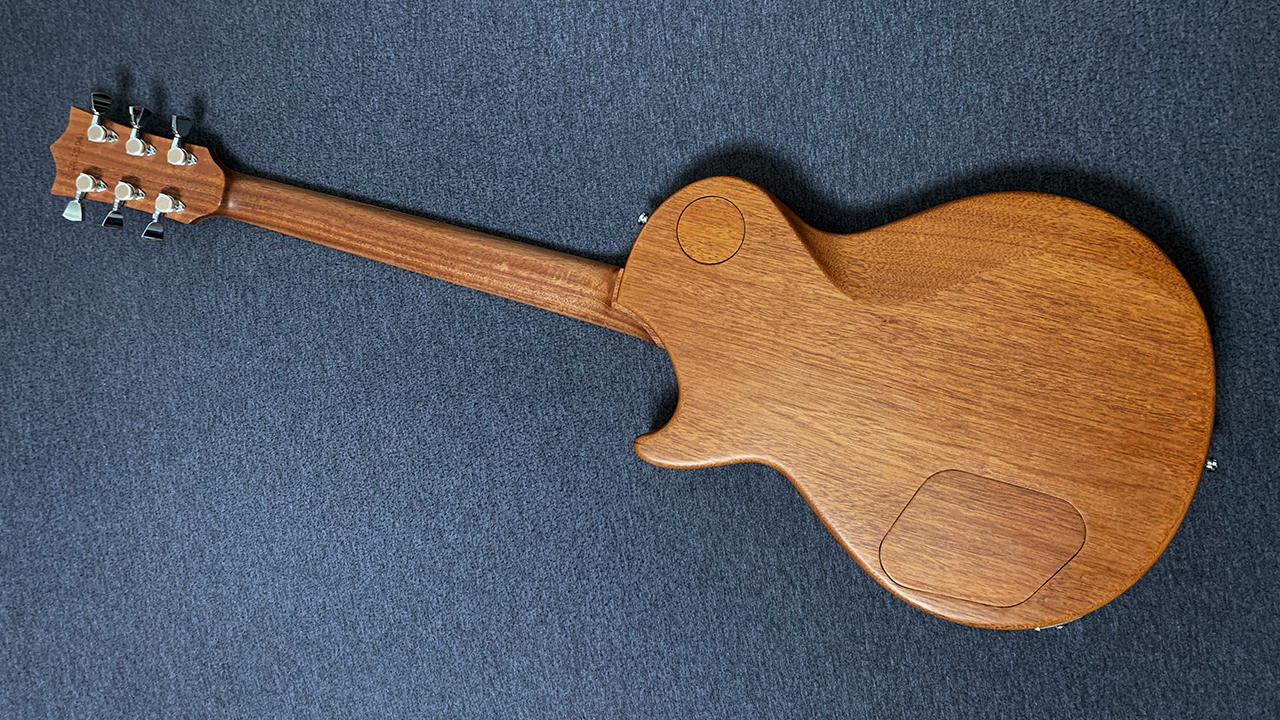

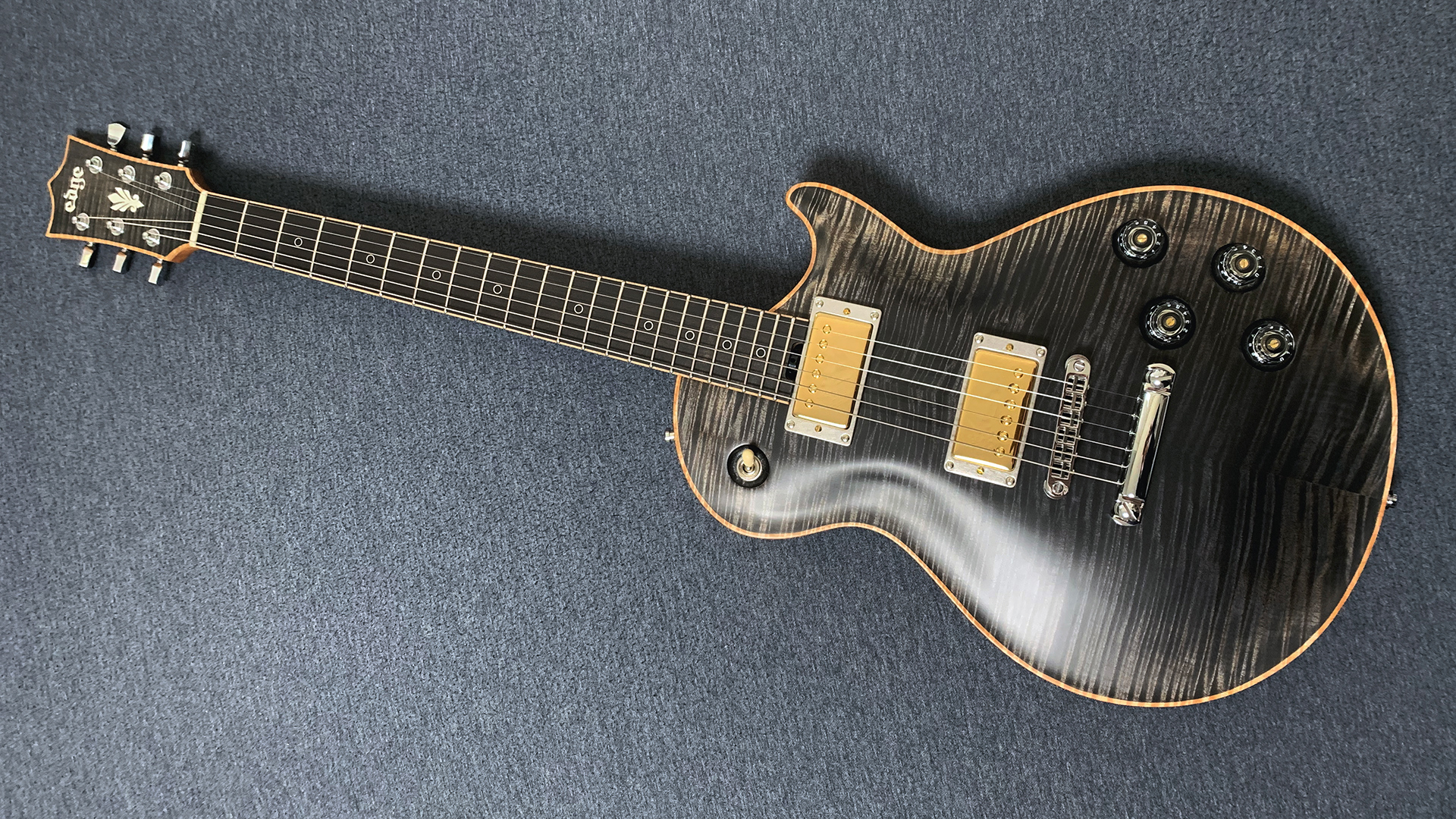

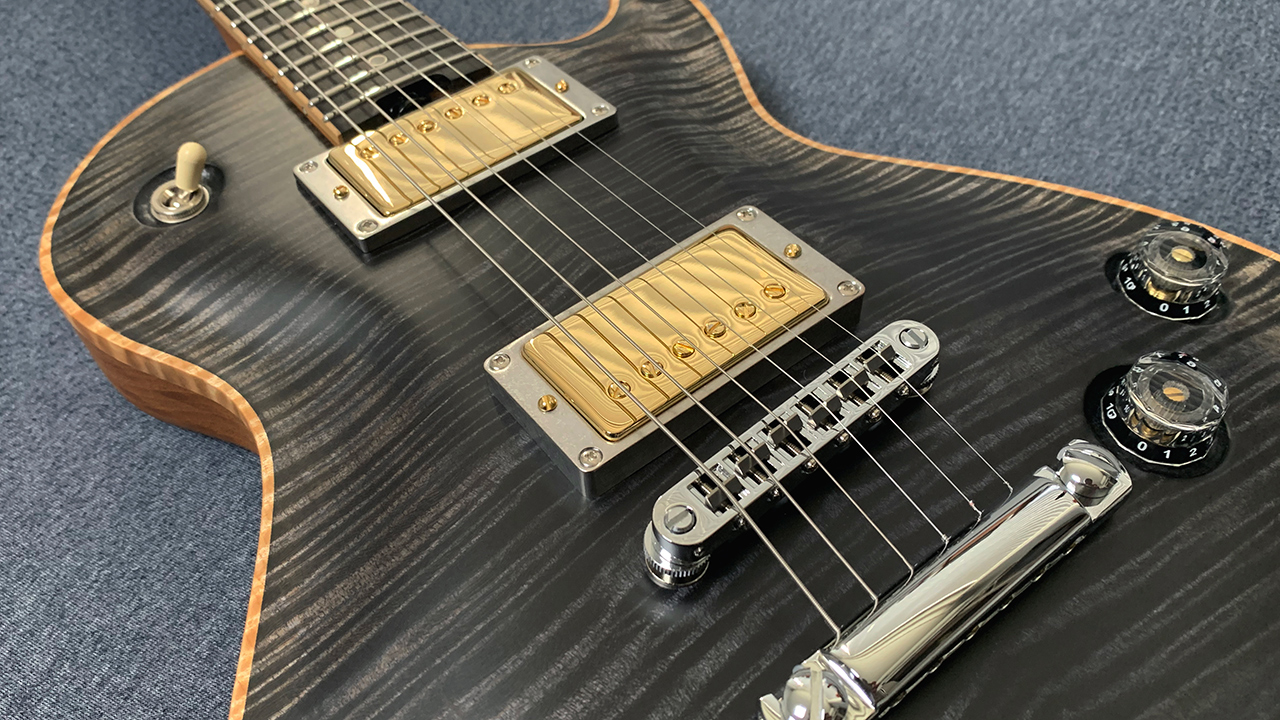

2023-04-10 : 완성

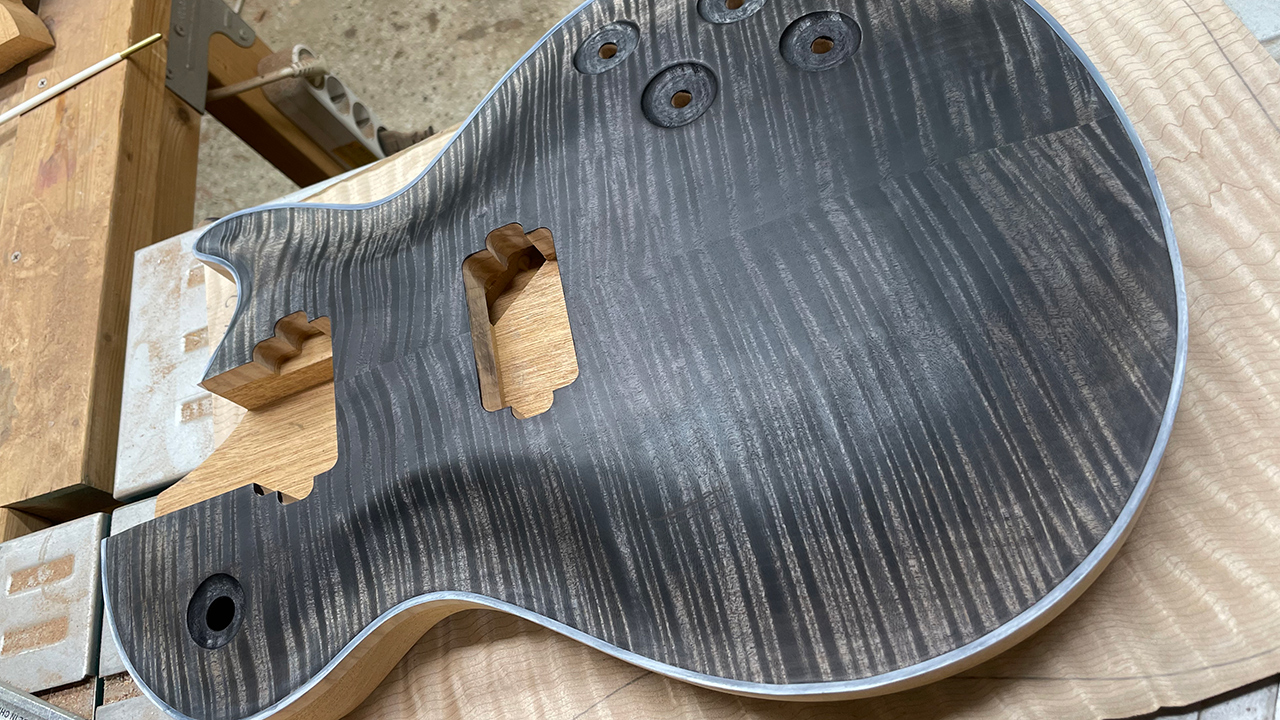

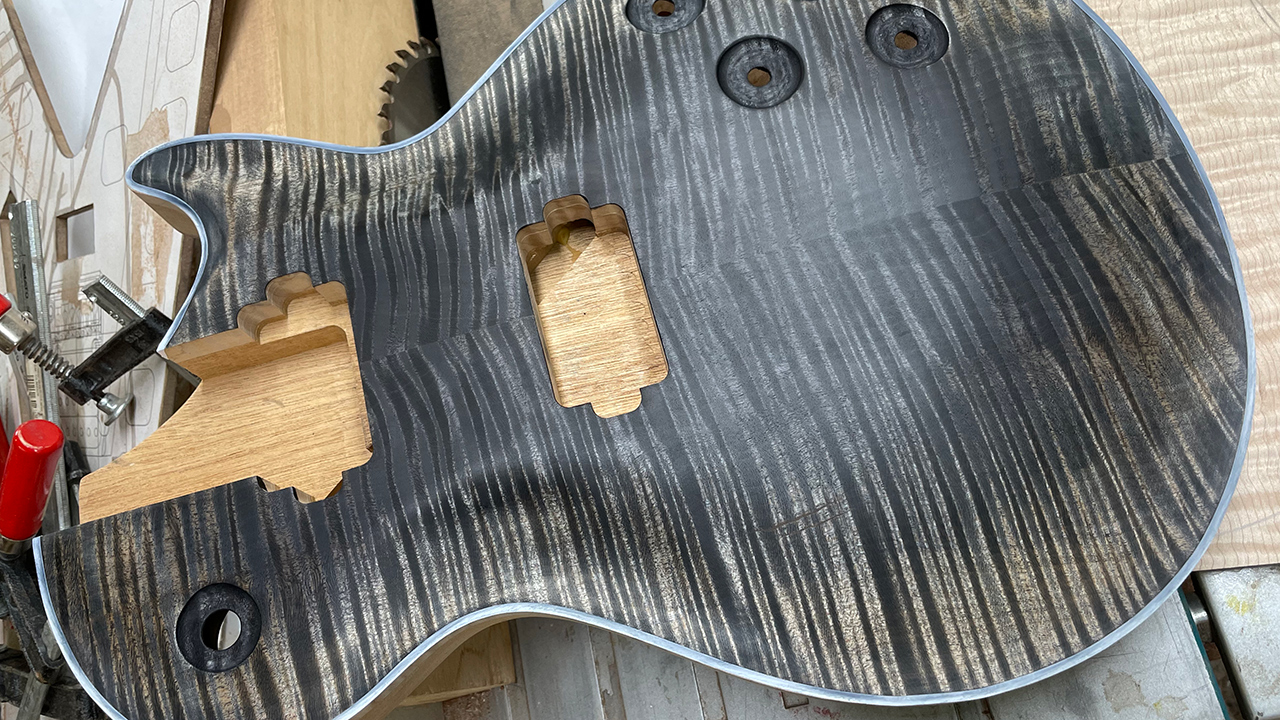

2023-03-27 : 바디컬러 그라데이션 컨펌

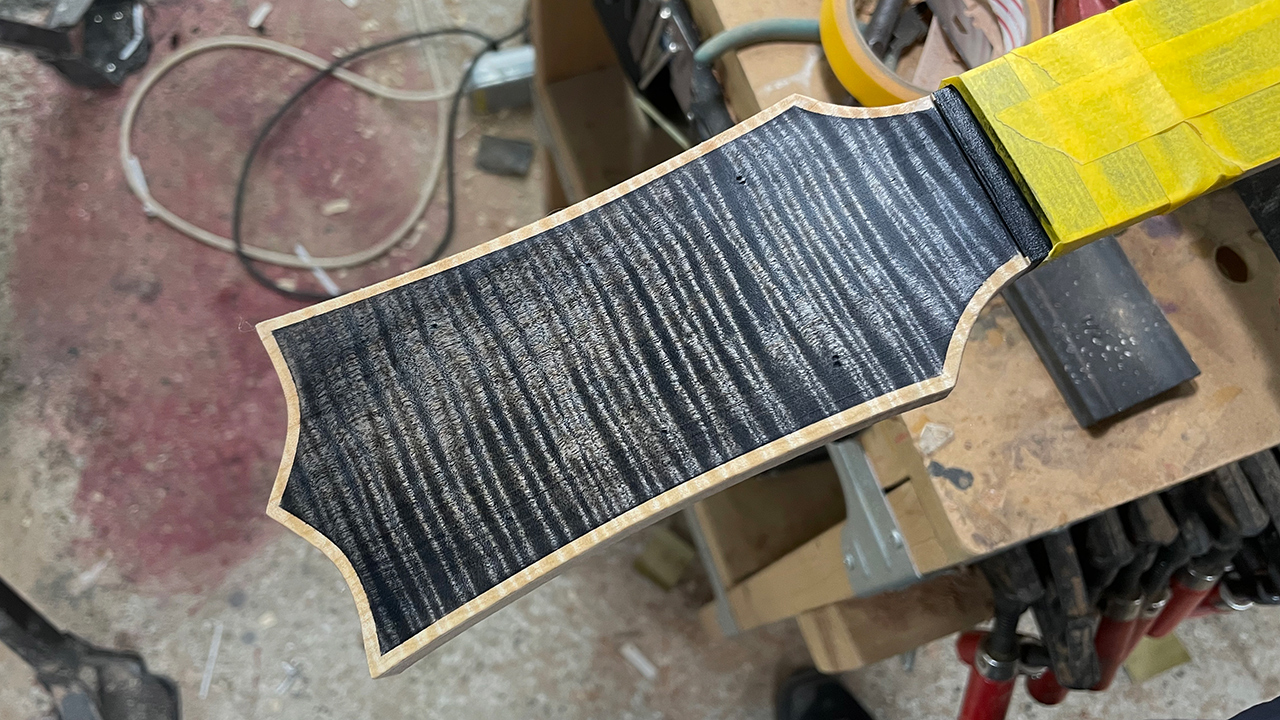

2023-03-20 : 헤드매칭 컬러작업

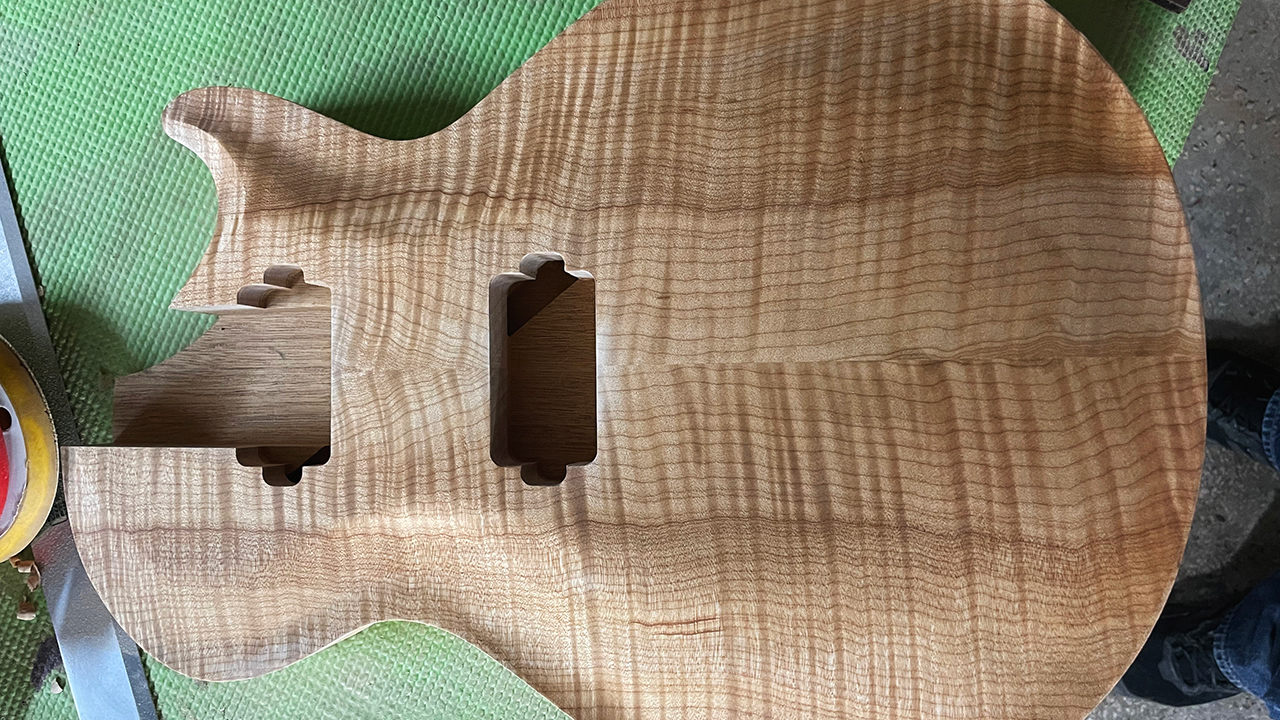

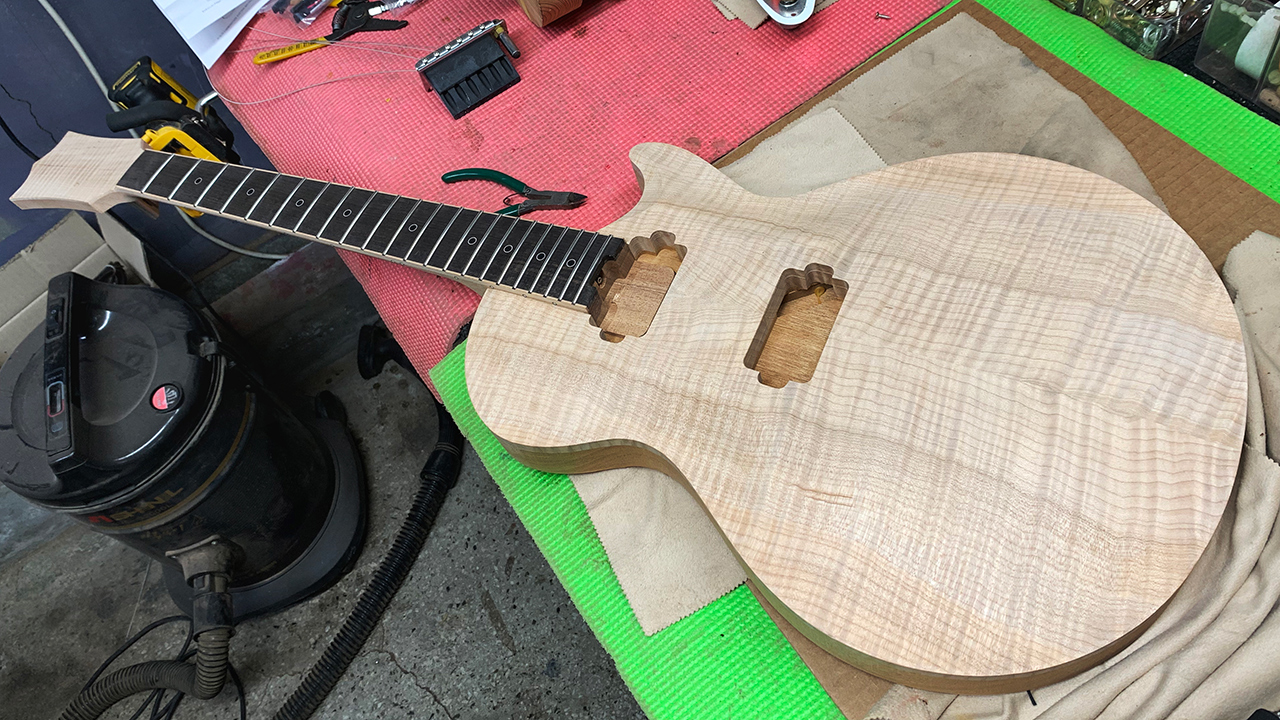

2023-03-16 : 메이플탑 굴곡면 처리 컨펌

2023-03-03 : 마호가니바디 + 마호가니넥(로즈우드지판) + 스테인레스프렛

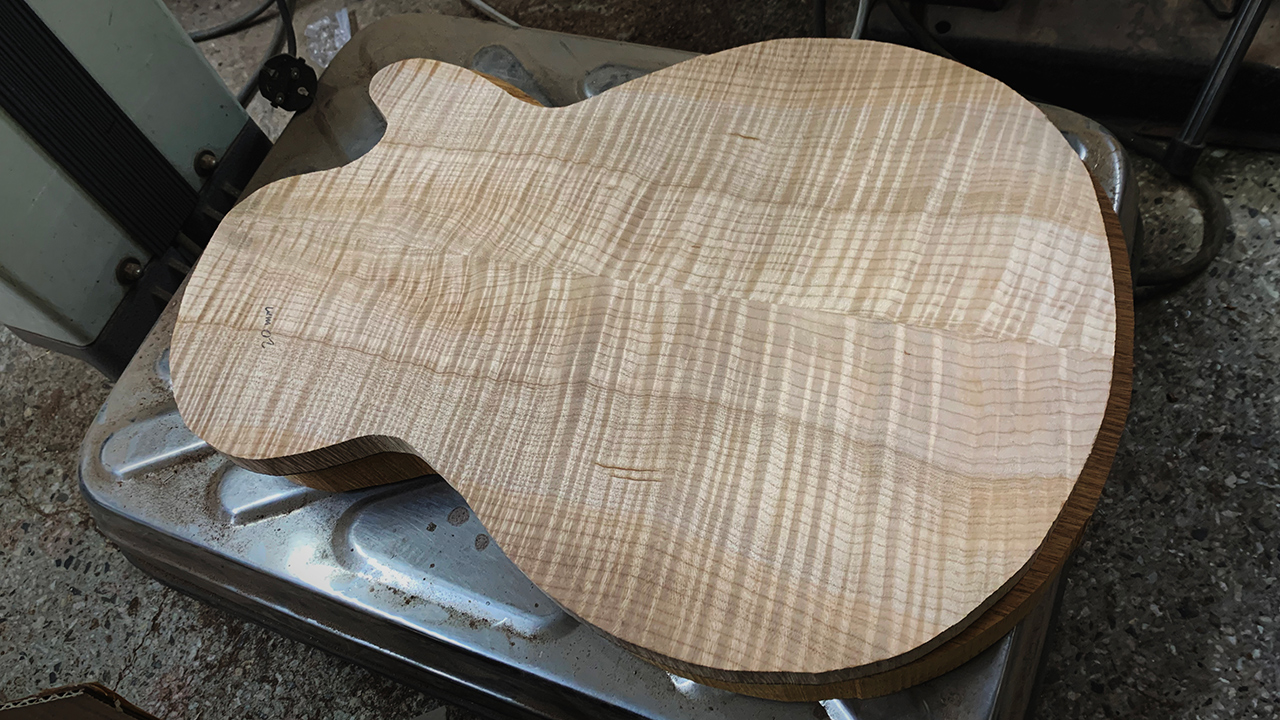

2023-01-09 : 마호가니바디 + 메이플탑 = 3.34kg

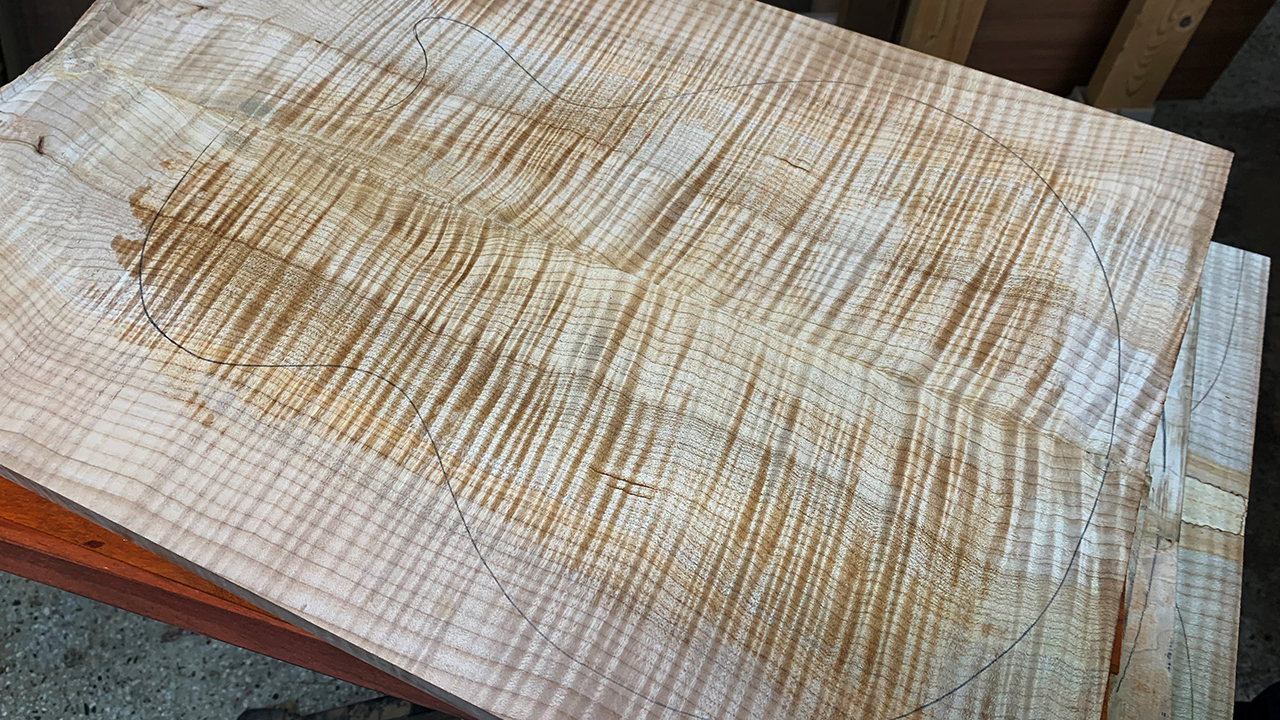

2022-11-31 : Top 선정

Body
Body Shape : Les Paul Custom + Nik Huber - ORCA '59

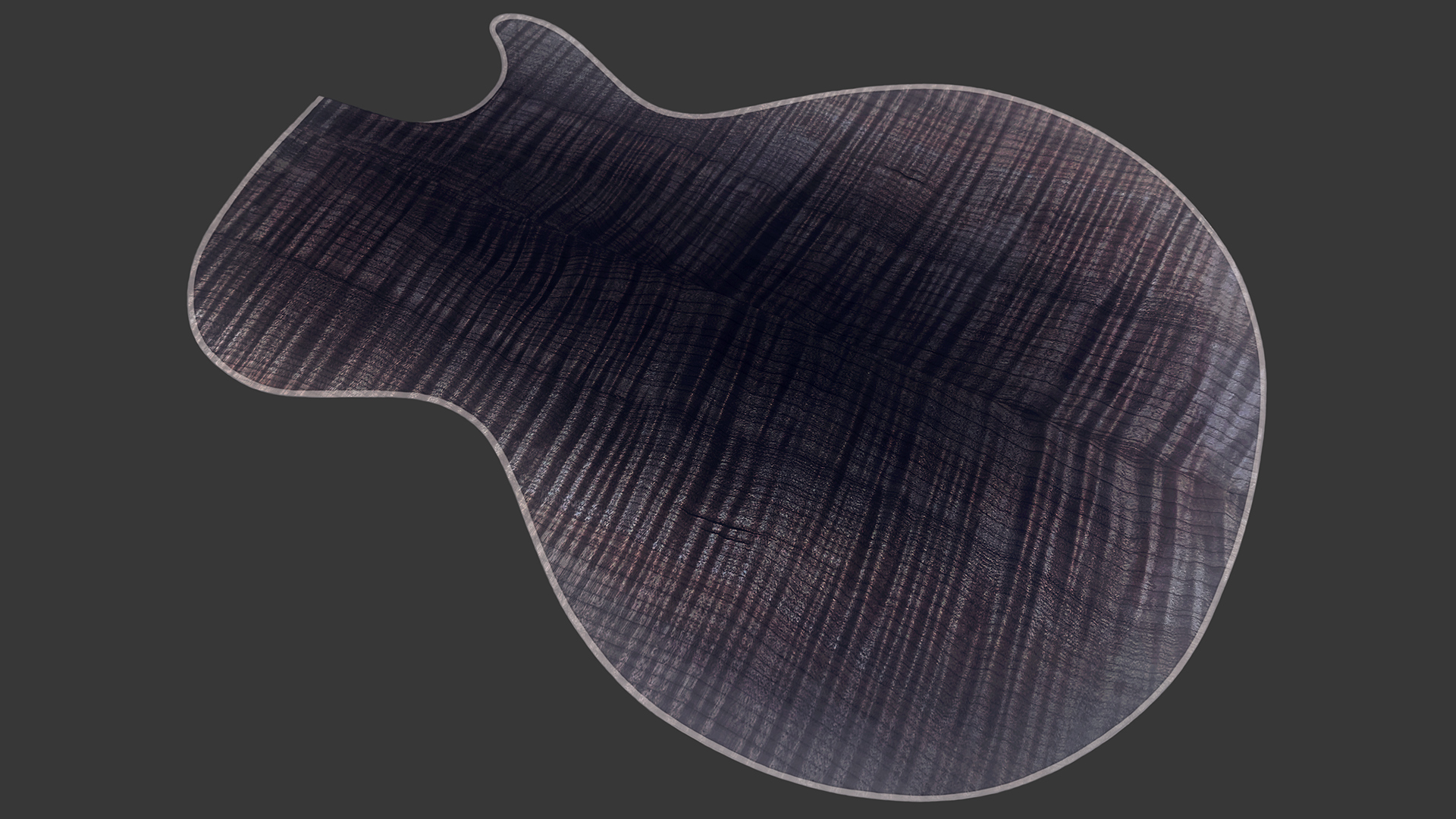

Top Shape : Edge Custom
- Gibson : Les Paul Custom Top Shape
Top Material : 5A Flame Maple Book Match(eg)
- Gibson : 2-Piece Figured Maple, Hide Glue Fit
- ORCA '59 : 2-Piece Curly Maple

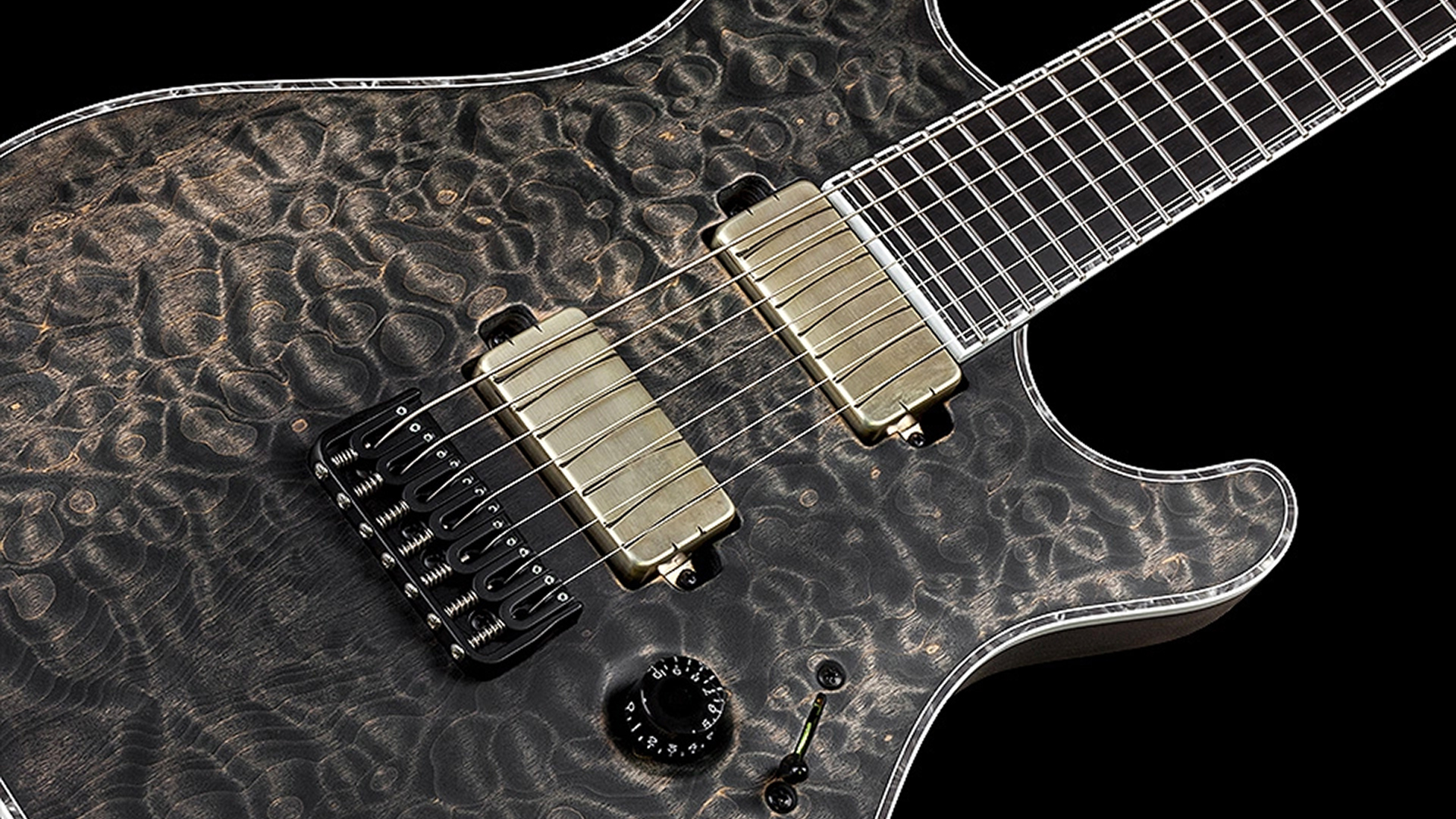

- Mayones : 2-Piece Quilted Maple

Back : Honduras Mahogny 1 piece(eg)
- Gibson : 1-Piece Lightweight Mahogany

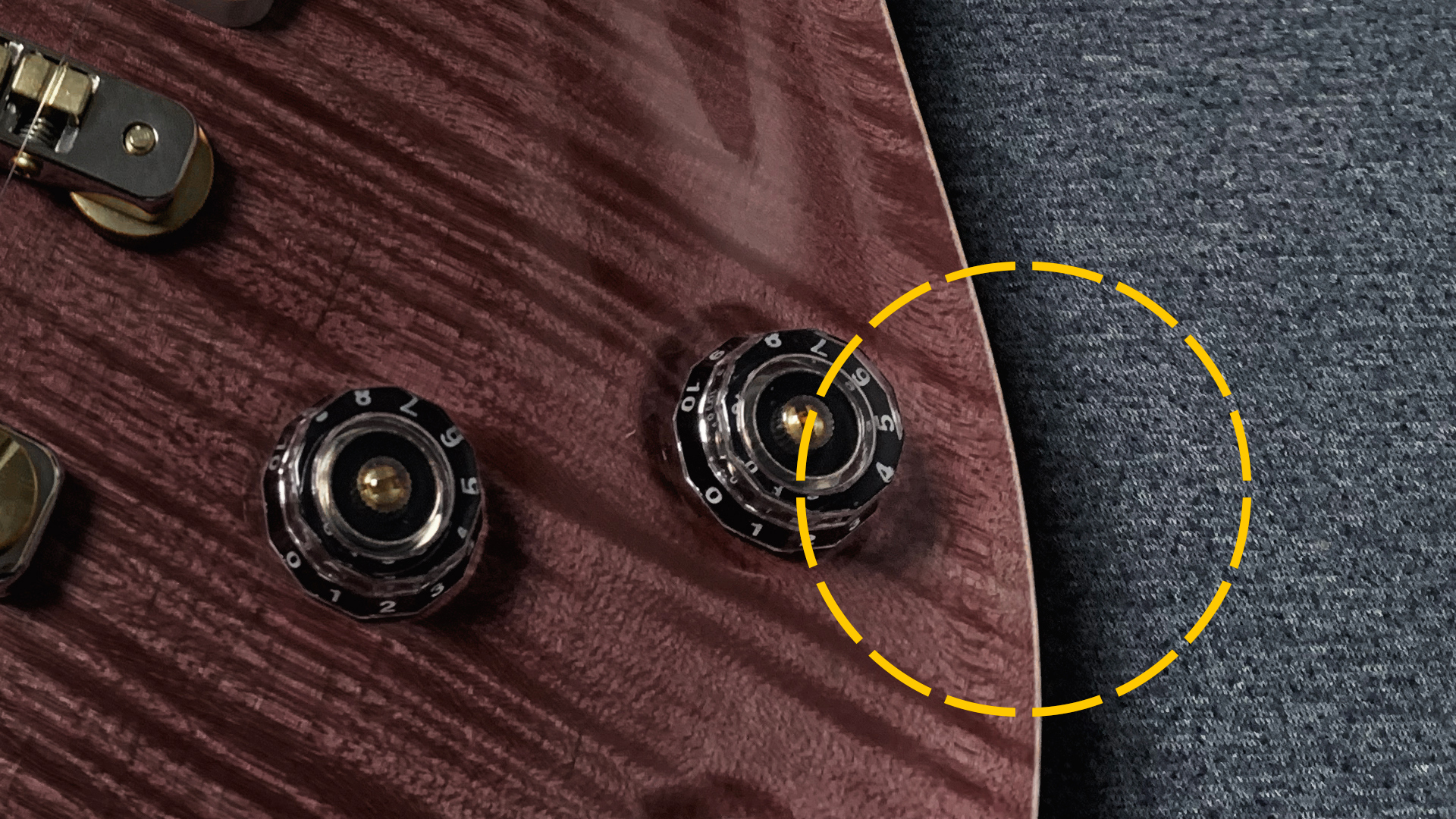

Binding : Edge Style 얇은 두께의 사포질
- Gibson : 1-Ply Royalite
- Mayones : 3-ply White ABS / Gray Pearloid

Finish : Option
- Gibson : Nitrocellulose Lacquer
- ORCA : Nitro - Semigloss
- Mayones : Antique Black

Neck
Material : Solid Mahogany
- Gibson : Solid Mahogany
- Mayones : 11-ply / Maple - Mahogany - Amazakoe - Wenge
- Edge : 9Pcs Roasted Maple Neck
Profile : Modern 'C' Shape(eg)
- Gibson : 50s Rounded Medium C-Shape / Historic '60
- Mayones : 16″ (406 mm)
- Fender Ultra Luxe Strat
Scale Length : 24.75" / 628.65mm
- Gibson : 24.75" / 628.65mm
- ORCA : 25“ / 635mm
Fingerboard Material : Indian Rosewood
- Gibson : Indian Rosewood, Hide Glue Fit
- ORCA : Brazilian Rosewood / Maple Fingerboard Binding
- Mayones : Ebony 3-ply White ABS / Gray Pearloid
Fingerboard Radius : 12"
Number Of Frets : 22
Frets : Stainless Medium Jumbo(eg)
Nut Material : TPP(Teflon Poly Carbon)(eg)
- Gibson : Nylon
- ORCA : Polished Bone
- Mayones : Graph Tech Black TUSQ
Nut Width : 1.687" / 42.85mm
- Gibson : 1.687" / 42.85mm
- ORCA : 1.67“ / 42,5mm
End of Board Width : 2.2239" / 56.89mm
Inlays : Al Ring/Center(eg) 12fret 1 Center
- Gibson : Cellulose Nitrate Trapezoid
Joint : Long Tenon, Hide Glue Fit

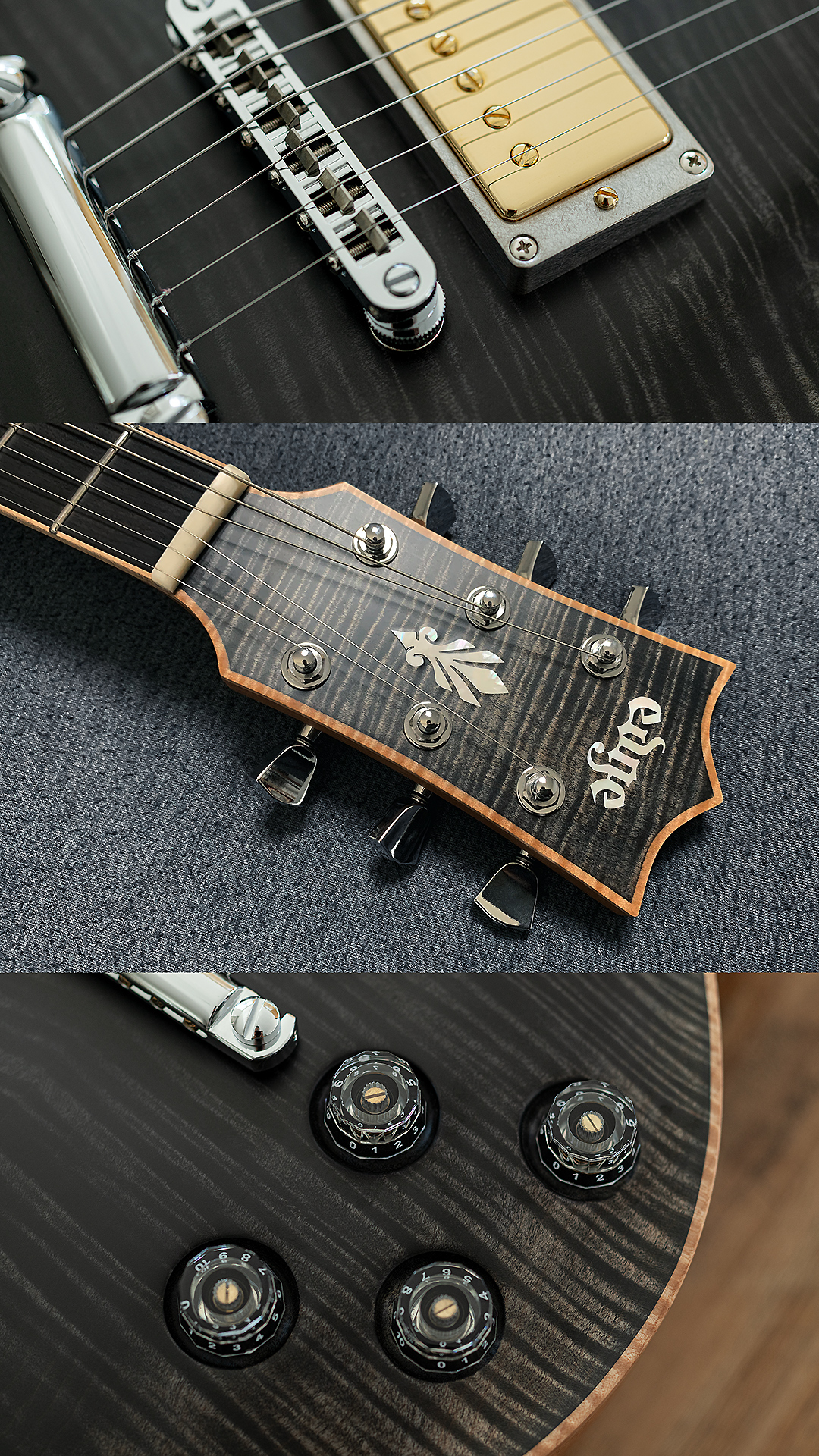

Headstock inlay : Edge 3X3 Open Book Head(eg)
- Gibson : Gibson logo in Mother of Pearl, Les Paul Model silkscreen
Neck Back Finish : Natural Oil(eg)

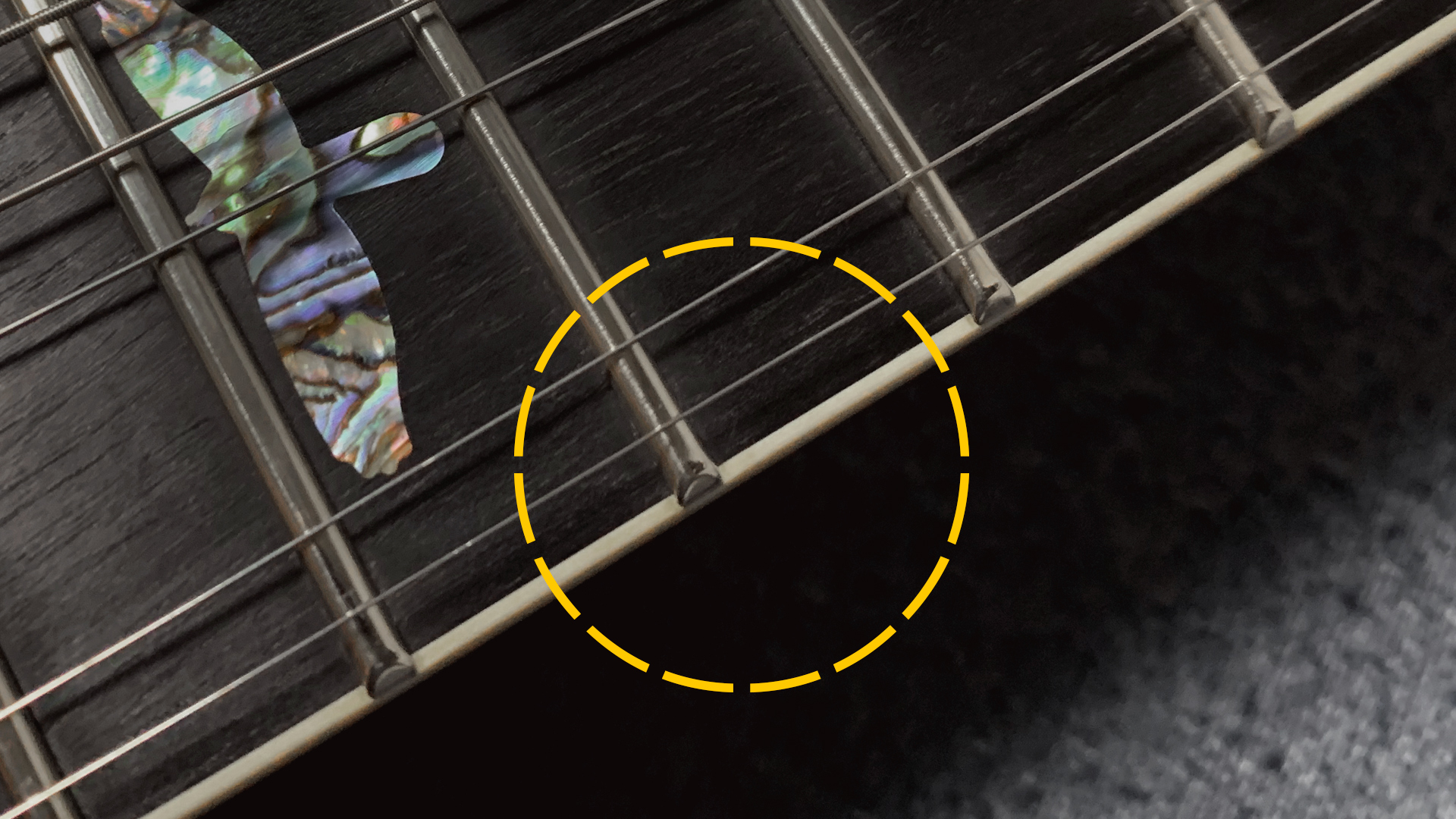

Fingerboard Binding : Maple Binding

Electronics
Heritage Custom : Custombucker Alnico 3 (Unpotted)
- Mayones Legend : H-H / Lollar Imperial Set
- Gibson : Neck Pickup - Burstbucker 2 / Bridge Pickup - Burstbucker 3
- Gibson : Neck Pickup - 57 Classic / Bridge Pickup - 57 Classic
Controls : 2 Volume, 2 Tone, CTS 500K Audio Taper Potentiometers, Paper-in-Oil Capacitors
Pickup Selector : 3-Way Switchcraft

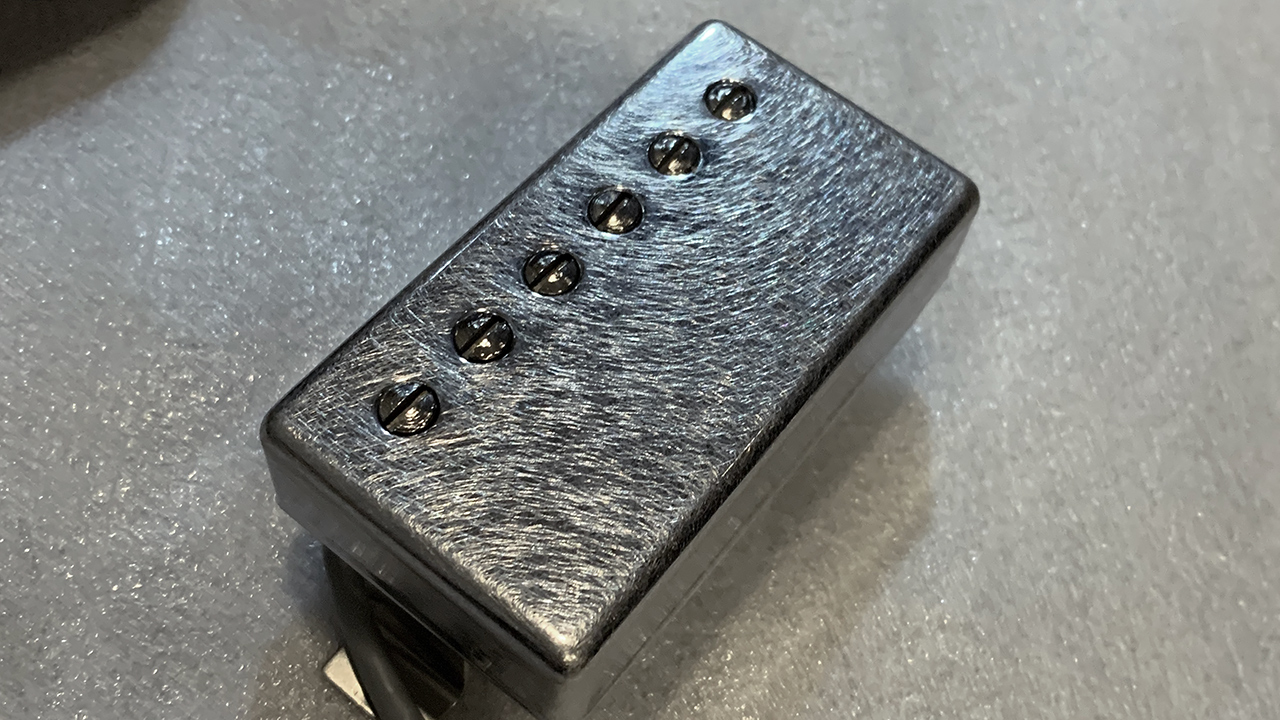

Pickup Ring : Brass (2set)
Output Jack : 1/4" Switchcraft / Regular(eg)

2023-01-09

Hardware
Finish : Chrome, Nickel, Gold
Tuner : Gotoh SG301 MGT Locking(eg) / Link
- T's A2C : Gotoh SG381-PM, MG-T / Link
Bridge : Tonepros TPFA / Link
Tailpiece : Tonepros T1ZSA-N / Link
Tuning Machines : Kluson Single Line, Single Ring
TrussRod : Authentic 1950s No-Tube
Truss Rod : Cover Authentic Stepped 2-Ply
Control Knobs : PRS Style
- Gibson : Speed Black / Link
- Gibson : Gold Butyrate Top Hats / Link

Switch Tip : Amber Catalin
Switchwasher : Replica Cellulose Acetate Butyrate
Jack Plate Cover : Laminated Cellulose Acetate Butyrate
Control Covers : Black Royalite
Strap Buttons : Aluminum
Mounting Rings : M69 Cellulose Acetate Butyrate

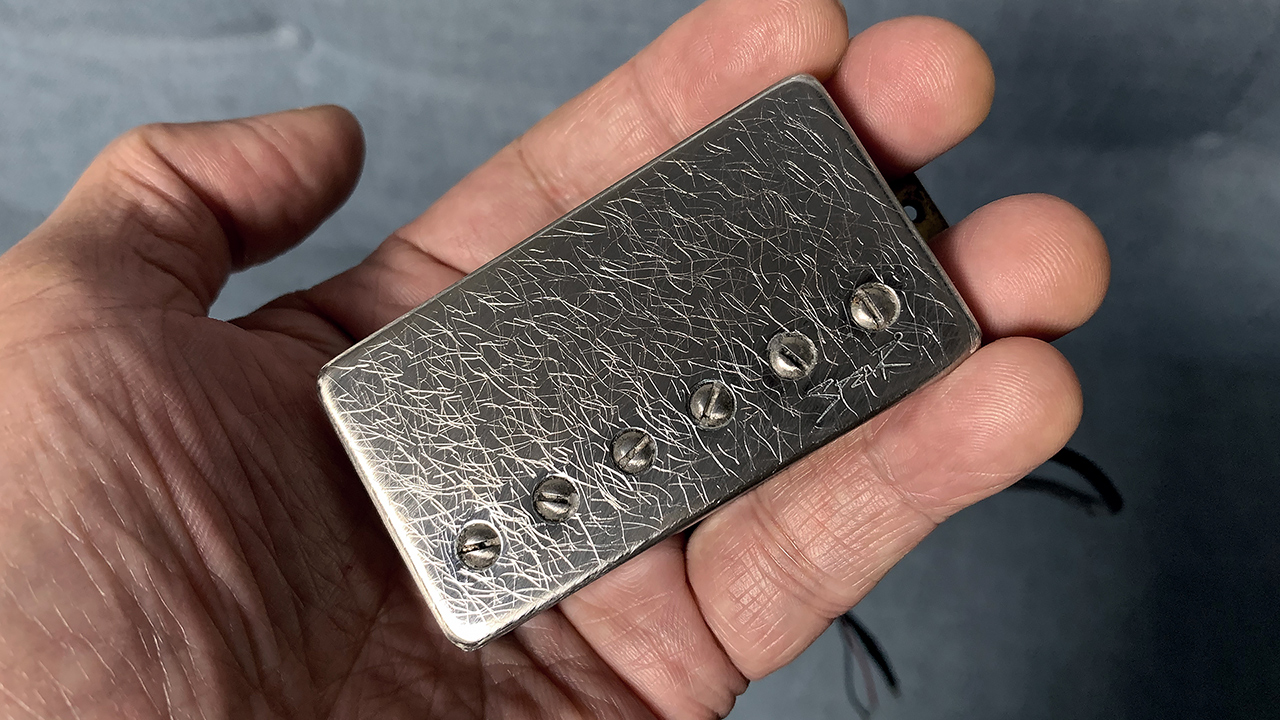

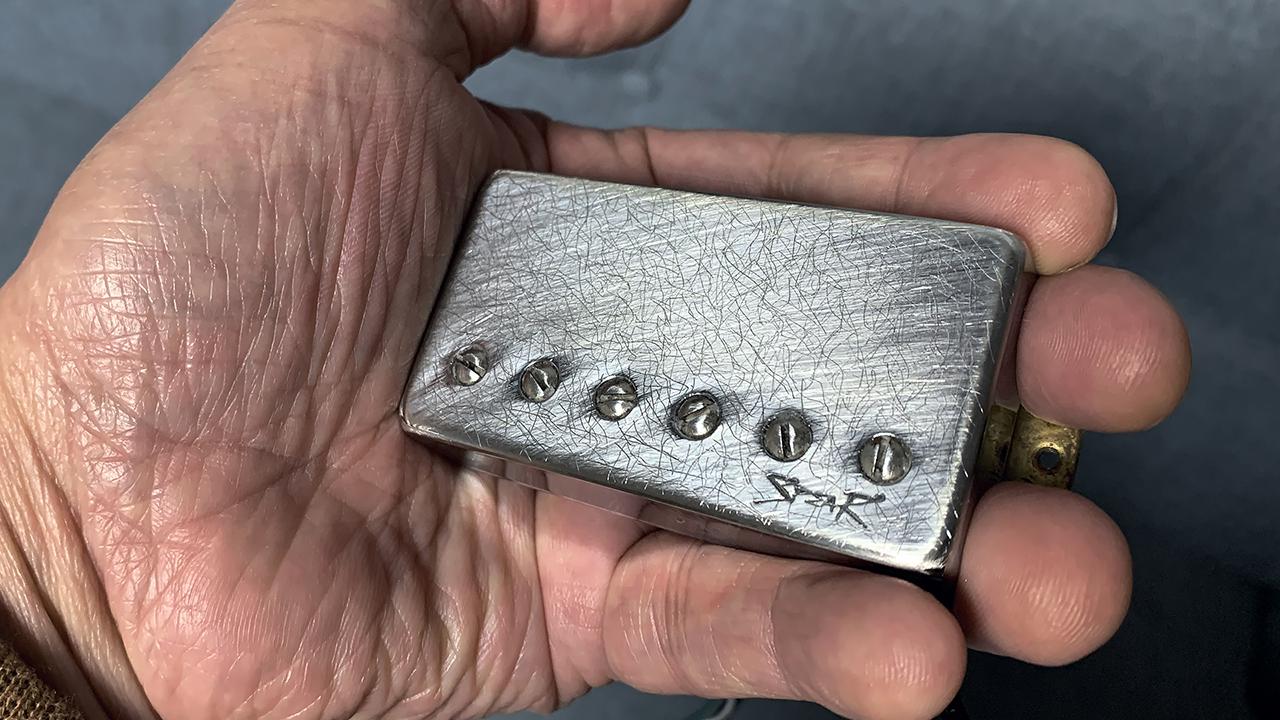

Pickup Covers : Authentic Profile Nickel Silver
